6" FHD Touch Screen
Industrial display
Optical Fiber Lighting
High-intensity LED
360° Electronic Steering
Motorized control

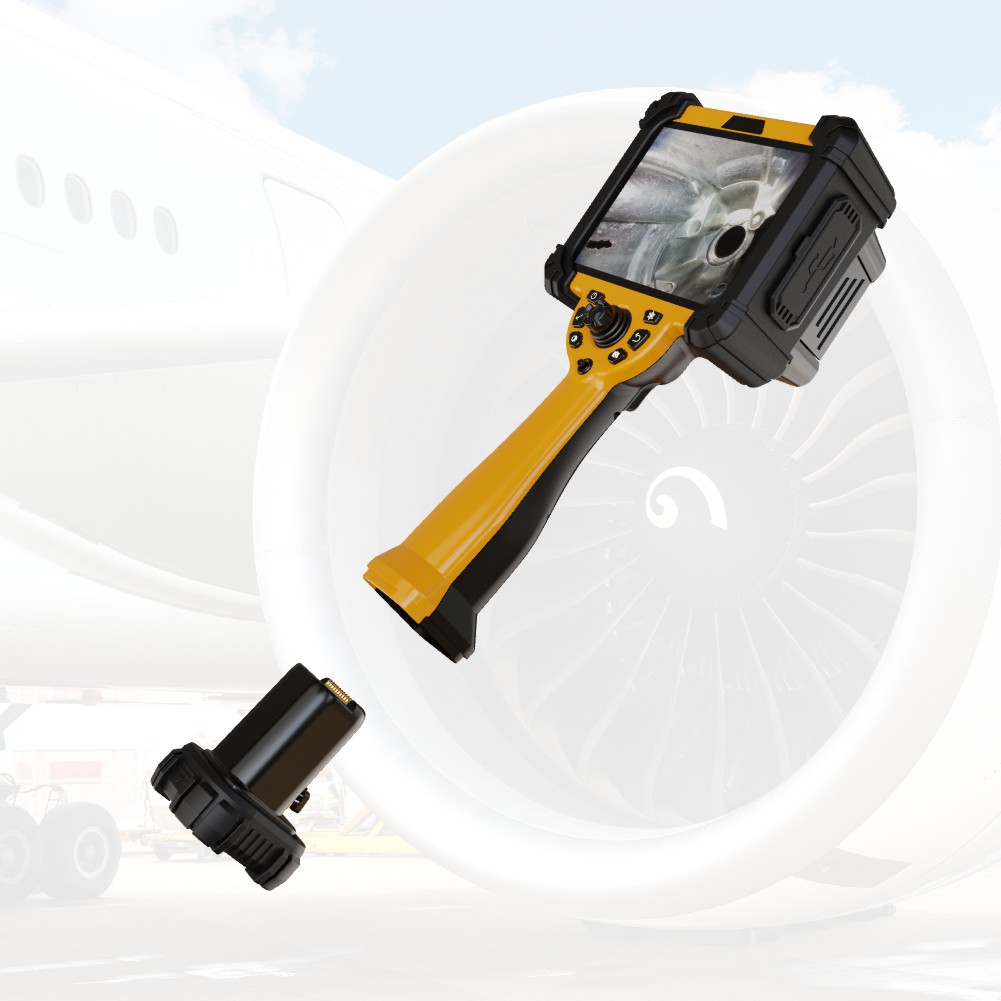

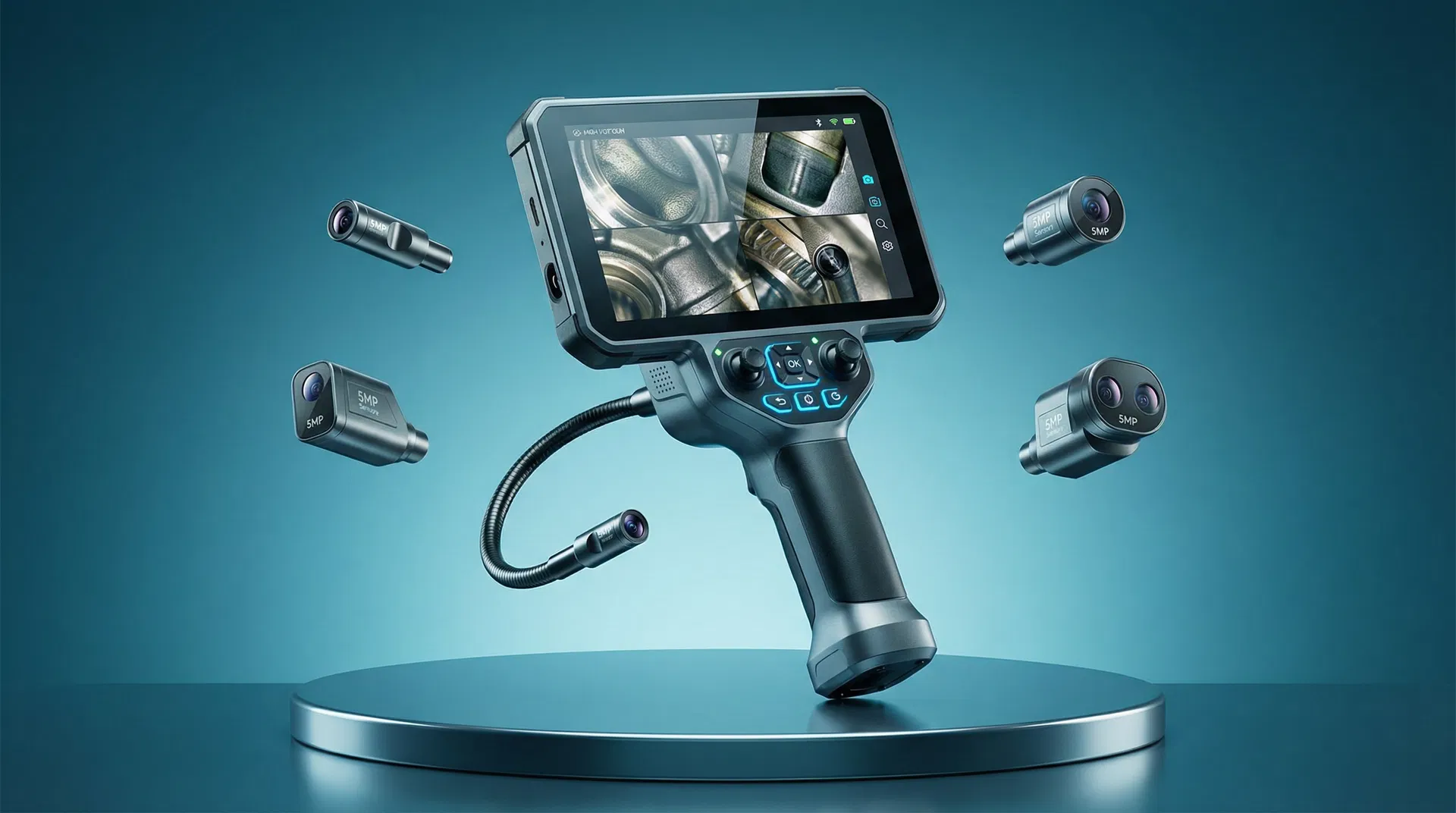

Fast Replaceable
Interchangeable cameras
Manual Focus
1-100mm depth
5MP Resolution
Ultra-high detail

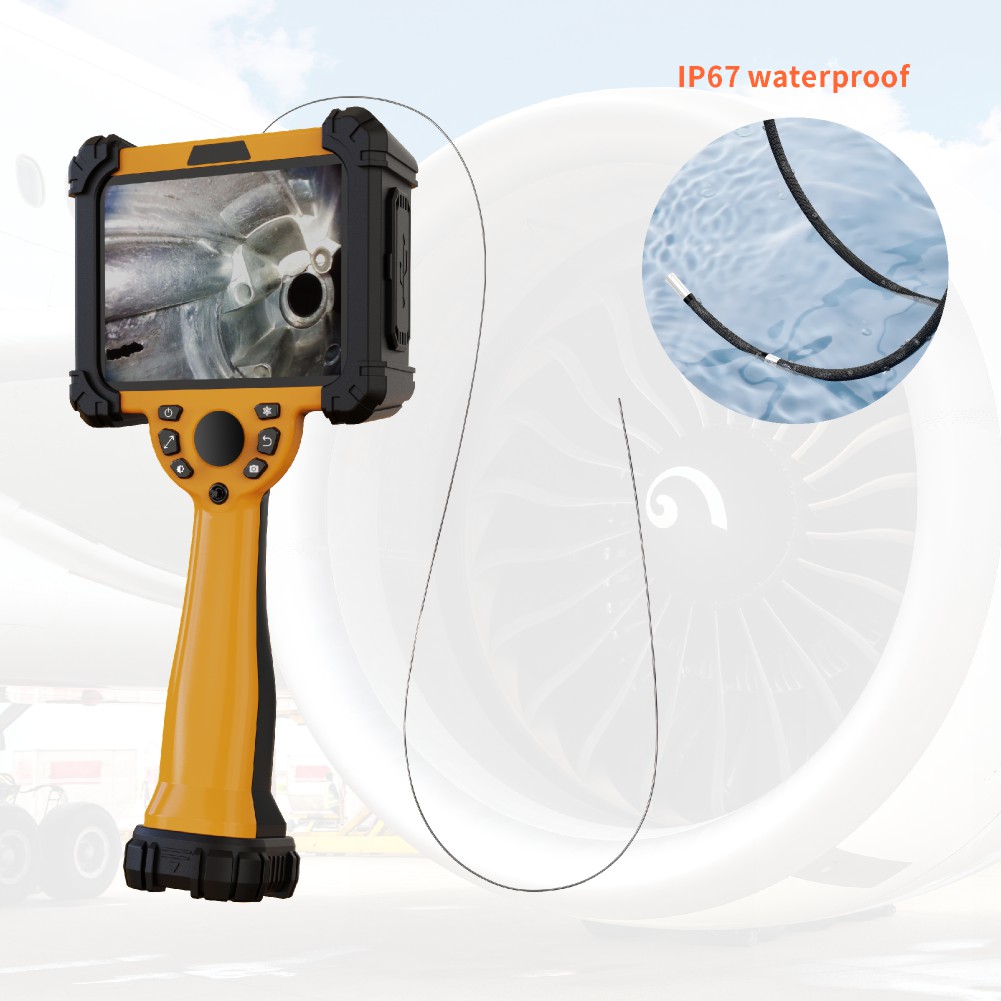

IP67 Waterproof
Oil & water resistant
18650 Battery
Long runtime

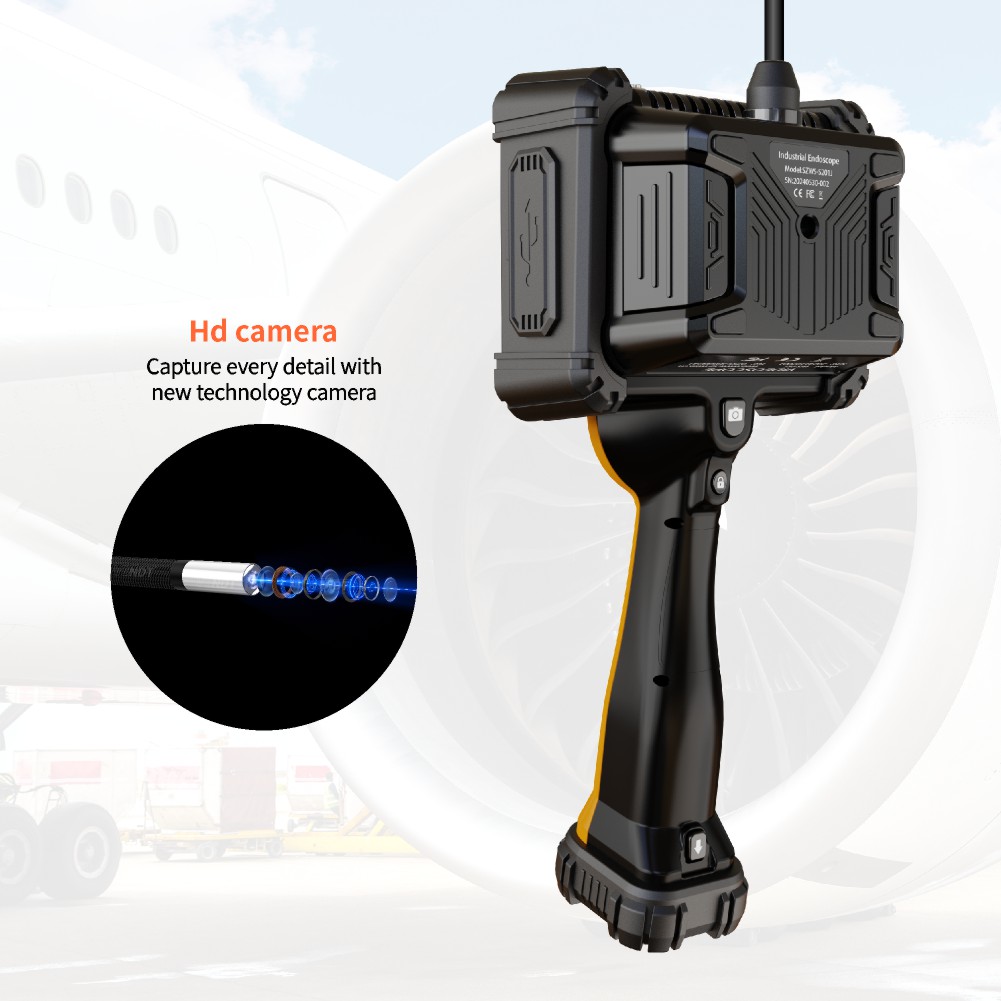

5MP Ultra-High Resolution
Professional precision videoscope
XT S-Series vs UV P-Series
| Feature | XT S-Series | UV P-Series |
|---|---|---|
| Camera Resolution | 5MP (Ultra-High) | 1MP (HD) |
| Articulation | Electronic (Motorized) | Manual (Joystick) |
| Focus Control | Manual Focus (1-100mm) | Fixed Focus (12-200mm) |
| UV Capability | Optional UV light | Dual-Wavelength (365nm + 405nm) |
| 3D Measurement | Available (XJ variant) | Not available |
| Target Industries | Aerospace, Automotive, Power Generation | FPI, Biofilm Detection, Food & Pharma |
| Price Point | Premium | Professional |
Technical Specifications
Camera System
- Resolution: 5MP (2592 x 1944 pixels)
- View Angle: 120°
- Focus Range: 1-100mm (manual adjustable)
- Depth of Field: Optimized for close-up inspection
- Illumination: High-intensity LED with adjustable brightness

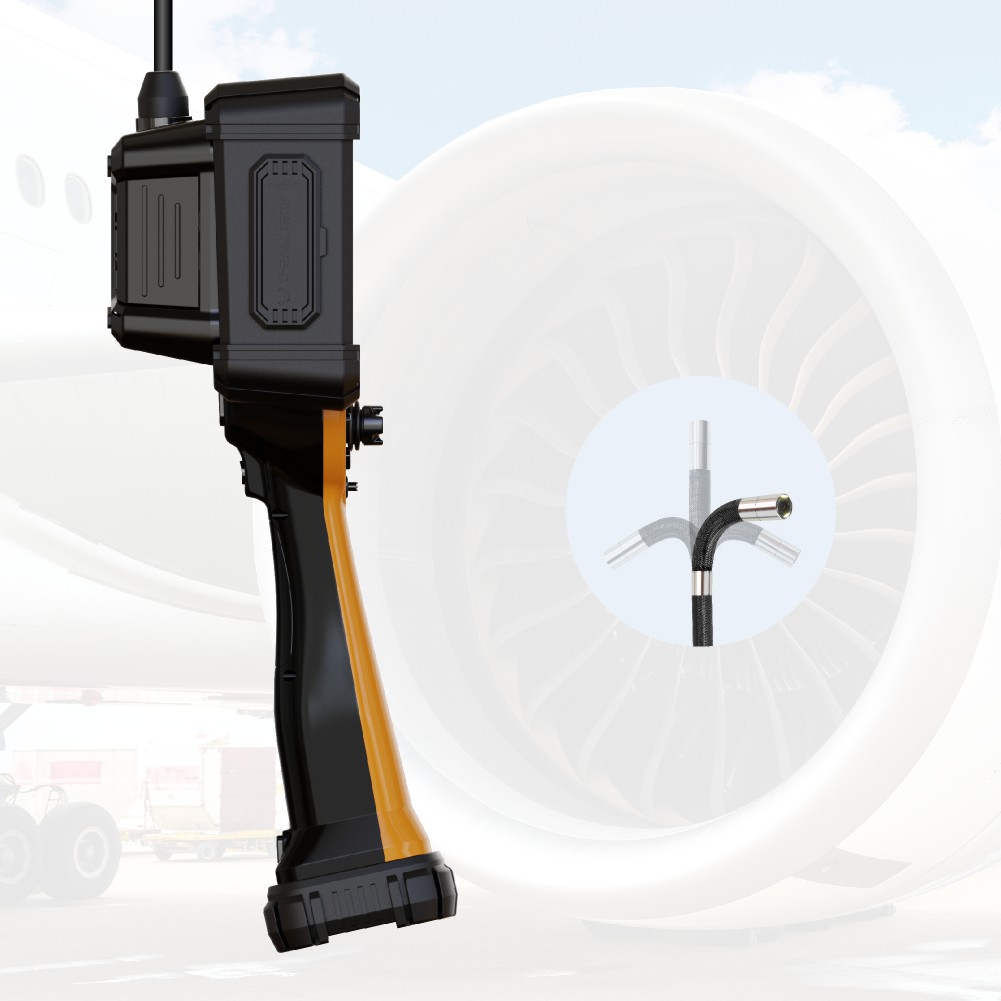

Articulation System
- Type: Motorized electronic articulation
- Range: 360° omnidirectional
- Bending Angle: Up to 150°
- Control: Precision joystick with position memory
- Repeatability: High precision for consistent positioning
Display & Interface
- Screen: 6" industrial touch screen
- Resolution: 1920 x 1080 FHD
- Operation: Touch + button controls
- Connectivity: HDMI, USB-C, WiFi
- Storage: TF card up to 128GB

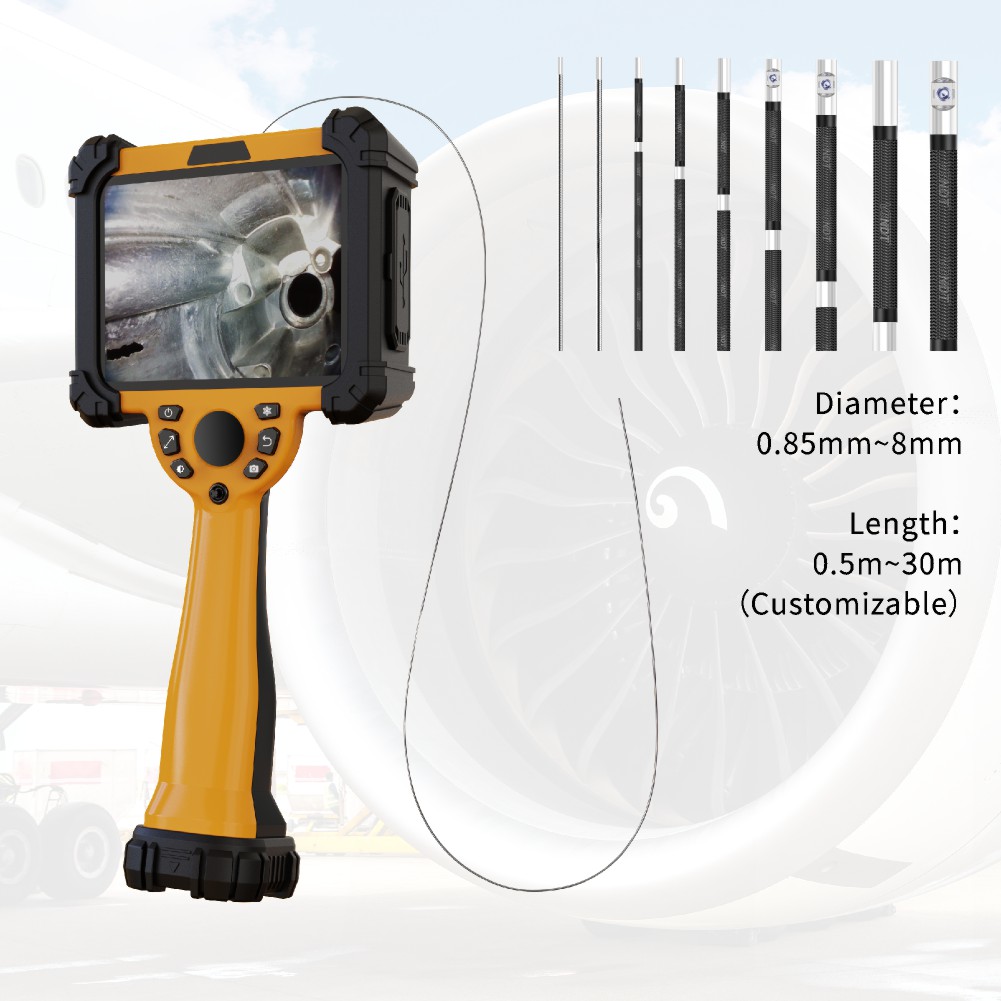

Probe Options
- Diameters: 3.9mm, 6mm, 8mm
- Lengths: 1m, 2m, 3m, 5m
- Construction: Tungsten braided
- IP Rating: IP67 (waterproof & oil-proof)
- Working Temp: -20°C to 70°C
Target Industries
Aerospace
- • Turbine engine inspection
- • Airframe component analysis
- • Precision defect detection
- • Dimensional verification
Automotive
- • Engine block inspection
- • Transmission analysis
- • Casting quality control
- • Assembly verification
Power Generation
- • Gas turbine inspection
- • Heat exchanger tubes
- • Boiler systems
- • Critical infrastructure
Product Gallery
